Dental Portable X-ray units

Model No.︰JF-10
Brand Name︰HJ-Dental
Country of Origin︰China
Minimum Order︰1 pc
Share on:

 Total 12 Related Items
Prev89101112Next

Product Description

FEATURES:


The unit is shock-proof, ray-proof, fixed anode, self-rectified X-ray unit.


It enjoys stable performance, easy operation, and portable for movement.


It applies to medical fluoroscopy and radiography on mouth, cavity bone, heart, skull as well as contraceptive ring.


SPECIFICATIONS:


Max fluoroscopy:


75kvp 3-5ma (un-continuous use)


Max radiography:


75kvp 10ma 6sec (interval time 3min)


Routine fluoroscopy condition: 65kvp 3ma


Power supply: AC220v±10%, 50hz, 1kva


Current: 2a (un-continuous, fluoroscopy)


6a (instantaneous, radiography)


Range of movement:


220mm (vertical, up-down);


130mm (horizontal, left-right)


Tube turning angle:


360 degree (vertical)


320 degree (horizontal)


Size of screen: 203mm x 254mm


Volume: 500 X 310X180mm


Packing dimension (ply-wood case): 750mm x 570mm x 400mm


Gross weight: 30kgs


Net weight: 25kgs

Payment Terms︰TT

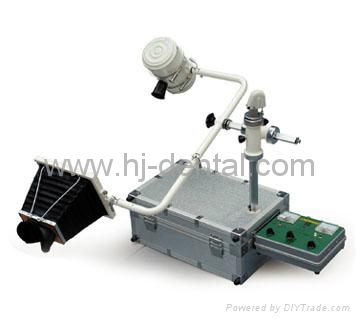

Product Image
